Architecture
OpenRA-RL connects three components through a gRPC bridge:
System Architecture
LLM Agent → MCP Server → Python Backend → C# Game Engine
get_observation
step
reset
get_map_info
force_attack
guard
patrol
retreat
scatter
build_structure
train_unit
set_rally_point
sell
Three-Repo Design
| Repository | Language | Role |
|---|---|---|
| OpenRA-RL | Python | Environment wrapper, gRPC client, agent examples |
| OpenRA (submodule) | C# | Modified game engine with embedded gRPC server |
| OpenEnv | Python | Framework providing standardized Gymnasium-style APIs |
Data Flow
Agent (Python)
↕ HTTP/WebSocket (OpenEnv protocol, port 8000)
Environment Wrapper (FastAPI)
↕ gRPC/Protobuf (bidirectional streaming, port 9999)
Game Engine (OpenRA + Kestrel)
↕ Native game logic
OpenRA World (C# actors, traits, orders)
gRPC Bridge
The bridge is embedded inside the OpenRA game engine using ASP.NET Core Kestrel. Key design decisions:
- Static ActiveBridge pattern: The gRPC server starts once (in
Activate()), while a static reference is updated each time the mod reloads. This avoids port conflicts from multiple server instances. - DropOldest channels: The game ticks at ~25 ticks/sec independently of the agent. Observation channels use a "drop oldest" policy so slow agents always receive the latest state.
- Non-blocking ticks: The game never blocks waiting for the agent. If no action arrives, the game continues with a no-op.
Key C# Files
| File | Purpose |
|---|---|
ExternalBotBridge.cs | Main trait (IBot, ITick), Kestrel gRPC server |
RLBridgeService.cs | gRPC service implementation |
ObservationSerializer.cs | World/Actor/Player state → Protobuf |
ActionHandler.cs | Protobuf commands → OpenRA Orders |
Key Python Files
| File | Purpose |
|---|---|
bridge_client.py | Async gRPC client with background observation reader |
openra_environment.py | OpenEnv Environment (reset/step/state) |
openra_process.py | Subprocess manager for game engine |
models.py | Pydantic models for observations and actions |
Protobuf Schema
The canonical schema lives at proto/rl_bridge.proto and defines:
GameObservation— Tick-level state: economy, military, units, buildings, spatial map, episode signalsAgentAction— List of commands to executeGameState— High-level game phase query
The proto is compiled to both Python (gRPC stubs) and C# (pre-generated for Docker/CI compatibility).
Async Event Queue
The game engine and the agent run at fundamentally different speeds — the game ticks at ~25 Hz while an LLM agent might take 2+ seconds per decision. The async event queue design solves this mismatch using .NET's System.Threading.Channels with bounded, non-blocking semantics.
Async Event Queue Design
Non-blocking channels decouple game ticks from agent I/O · DropOldest ensures freshness
2. Write to obs channel
3. Read all pending actions
4. Execute as Orders
Missed ticks are invisible
No backpressure on agent
Channel Design
Each session maintains two bounded channels:
| Channel | Type | Capacity | Policy | Writer | Reader |
|---|---|---|---|---|---|
| Observation | BoundedChannel<GameObservation> | 1 | DropOldest | Game thread | gRPC stream |
| Action | BoundedChannel<AgentAction> | 16 | DropOldest | gRPC stream | Game thread |
// Observation channel: capacity=1, latest overwrites stale
readonly Channel<GameObservation> observationChannel =
Channel.CreateBounded<GameObservation>(
new BoundedChannelOptions(1)
{
FullMode = BoundedChannelFullMode.DropOldest,
SingleWriter = true,
SingleReader = true,
});
Why This Works
- Game never blocks:
observationChannel.Writer.TryWrite(obs)is non-blocking. If the channel is full (agent hasn't read yet), the old observation is silently replaced. - Agent always sees latest state: With capacity=1 and DropOldest, the single slot always contains the most recent tick's observation. An agent waking up after 2 seconds of thinking reads tick 150, not a queue of ticks 100-150.
- Actions are batched: The game drains all pending actions each tick with
TryRead()in a loop. Multiple commands sent between ticks are all executed together. - No-op on empty: If no actions are pending, the game continues with default behavior — no stall, no error.
gRPC Stream Tasks
The RLBridgeService.GameSession RPC spawns two concurrent async tasks that bridge the channels to the gRPC stream:
ObsSender task: channel.Reader.ReadAsync() → stream.WriteAsync()
ActionReceiver: stream.MoveNext() → channel.Writer.WriteAsync()
Both tasks exit when either the game ends or the agent disconnects, triggering cleanup via CancellationToken.
Multi-Session Architecture
The training setup runs 64 game sessions inside a single .NET process, sharing JIT-compiled code and mod data. A gRPC server routes requests by session_id to a thread pool that ticks each game forward independently.
Multi-Session Worker Pool Architecture
64 game sessions in a single .NET process · shared JIT & mod data
DestroySession
FastAdvance
GetState
This design replaced the original one-process-per-environment approach, cutting reset time from 5-15 seconds down to 256ms and reducing memory from ~40 GB to ~5-7 GB for 64 concurrent sessions.
Game Lifecycle

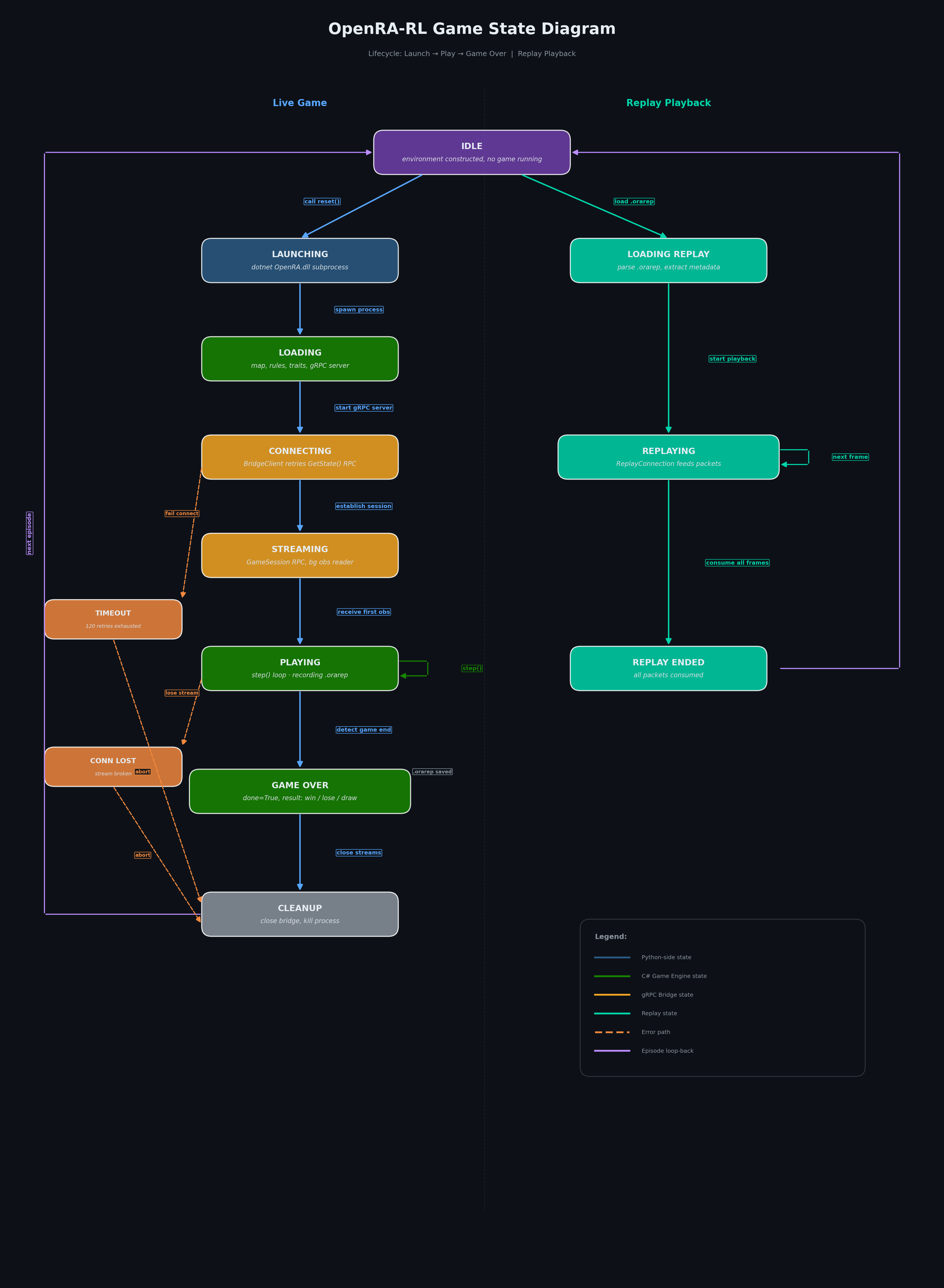

Game State Machine
Environment lifecycle · live game & replay playback paths
- Reset: Environment starts a new game map, waits for the game to initialize
- Planning Phase (optional): Agent studies the map and opponent before acting
- Game Loop: Agent receives observations, sends actions each tick
- Game Over: Episode ends with win/lose/draw signal
Appendix: Architecture Evolution
This section traces the evolution from the original one-process-per-session design to the current multi-session worker pool. Understanding why each decision was made is as important as understanding the final design.
A.1 Legacy Architecture (v1)
The original design was simple: each RL environment spawned a separate .NET game process.
Legacy: One Process Per Session
Each environment spawns a separate .NET process with its own ModData, JIT, and gRPC server
Why it worked at first: For 1-4 concurrent sessions, this is the simplest correct design. Process isolation guarantees zero shared state bugs. Each process has its own gRPC server on a unique port. Reset means kill + respawn.
Why it broke at 64 sessions:
| Problem | Impact |
|---|---|
| 64x JIT compilation | Each .NET process re-JITs the same code. 2-5s per process, serialized by a semaphore to avoid CPU saturation |
| ~40 GB RSS | Each process loads ~600 MB of ModData + JIT cache. 64 copies = massive memory waste |
| 5-15s reset latency | Kill process → spawn → JIT → load mod → load map → start gRPC. For RL training at 1000+ episodes, this dominates wall time |
| Port pool exhaustion | Each process needs a unique gRPC port. Managing 64 ports adds complexity and fragility |
| File descriptor limits | 64 processes × ~30 fds each approaches OS limits on some Linux configs |
A.2 Key Architecture Decisions
Decision 1: Share ModData across sessions
Problem: ModData (game rules, sprites, traits) is ~600 MB per process and identical across all sessions.
Options considered:
- (a) Shared memory / memory-mapped files — complex, C# interop overhead
- (b) Single process, multiple threads sharing one ModData instance
Chosen: (b). ModData is read-only after initialization, so sharing is safe without locks. This alone saves ~35 GB for 64 sessions.
Risk: Any code that writes to ModData during gameplay would corrupt all sessions. Mitigated by the fact that OpenRA's ModData is immutable by design.
Decision 2: Worker pool instead of per-session threads
Problem: 64 dedicated threads (one per session) waste CPU when sessions are idle (waiting for agent input between FastAdvance calls).
Options considered:
- (a) Dedicated thread per session that sleeps when idle
- (b) .NET ThreadPool (
Task.Run) for ticking - (c) Fixed-size worker pool with
BlockingCollection
Chosen: (c).
Why not (a): 64 threads that mostly sleep still consume stack memory and OS scheduler overhead. When all 64 wake simultaneously (batch training), they thrash the CPU.
Why not (b): Task.Run puts work on the .NET ThreadPool. gRPC's Kestrel server also uses the ThreadPool. If 64 game ticks are running on pool threads, gRPC can't accept new requests — thread pool starvation. We hit this in testing: 0/16 sessions completed because gRPC handlers couldn't execute.
Why (c): Dedicated background threads (not ThreadPool) with a bounded queue. Workers only consume CPU when there's actual work. The bounded queue provides backpressure — if all workers are busy, FastAdvance returns RESOURCE_EXHAUSTED and the client retries. This prevents the system from accepting more work than it can handle.
Decision 3: Tick on worker threads, not gRPC threads
Problem: The initial worker pool attempt ticked game state inline on the gRPC handler thread (using a SemaphoreSlim to limit concurrency). This starved the gRPC thread pool.
Solution: Worker threads are completely separate from the .NET ThreadPool. The gRPC handler submits a WorkItem to the queue and awaits the TaskCompletionSource — this frees the gRPC thread to handle other requests while the worker ticks the game.
gRPC thread: submit WorkItem → await tcs.Task → return observation
Worker thread: dequeue WorkItem → tick game → tcs.TrySetResult(true)
Decision 4: Per-session tick lock
Problem: Two concurrent FastAdvance calls for the same session could tick the same World from two worker threads simultaneously. World.Tick() mutates actors, effects, and game state — none of this is thread-safe.
Solution: SemaphoreSlim(1,1) per SessionState. The worker acquires it before ticking. A second FastAdvance for the same session queues behind the first.
Decision 5: SetLocalPauseState vs SetPauseState
Problem: Games start paused (waiting for agent to connect). The original code called world.SetPauseState(false) to unpause, which queues a PauseGame Order. But in the multi-session tick loop, this Order gets processed during the same tick cycle and immediately re-pauses the game. The game never advances past tick 3.
Solution: world.SetLocalPauseState(false) sets the pause flag directly without queuing an order. In multi-session mode, there's no network peer to synchronize with, so the order-based approach is unnecessary.
Decision 6: [ThreadStatic] on Sync.unsyncCount
Problem: Sync.RunUnsynced() uses a static unsyncCount to track reentry. With multiple worker threads, thread A increments it, thread B reads a corrupted value, and the sync check throws false positives.
Solution: [ThreadStatic] gives each thread its own counter. Default value is 0 on new threads, which is the correct initial state.
Decision 7: PerfHistory.Disabled to avoid lock contention
Problem: World.Tick() wraps actor ticking in new PerfSample("tick_actors"), which calls PerfHistory.Increment() — protected by lock (SyncRoot). With 64 sessions ticking concurrently, all workers contend on this single lock.
Solution: A volatile bool Disabled flag that short-circuits Increment() to a no-op. Set during RLSessionManager.Initialize(). PerfHistory is only useful for the UI performance overlay, which doesn't exist in headless mode.
A.3 Comparison
| Metric | Legacy (v1) | Multi-Session (v2) | Improvement |
|---|---|---|---|
| Reset latency | 5-15s | 256ms | ~40x faster |
| RSS (64 sessions) | ~40 GB | ~6 GB | ~7x less |
| JIT compilation | 64x (once per process) | 1x (shared) | 64x less |
| Threads | ~200 (3 per process) | ~20 (N workers + gRPC) | ~10x fewer |
| Aggregate ticks/sec | ~8K (contention) | ~15K (worker pool) | ~2x faster |
| Port management | Pool of 64 ports | Single port, session_id routing | Simpler |
A.4 What We'd Do Differently
-
Start with the multi-session design. The per-process design was "correct by isolation" but hit scaling walls quickly. If you know you'll need 16+ concurrent sessions, design for shared state from day one.
-
Use
[ThreadStatic]sparingly. It's a blunt instrument. We only needed it forSync.unsyncCountbecause OpenRA's codebase assumes single-threaded access. A session-scoped context object would be cleaner. -
Don't trust the .NET ThreadPool for mixed workloads. gRPC and game ticking both want ThreadPool threads. Dedicated threads for the compute-heavy path (game ticking) and ThreadPool for the I/O-heavy path (gRPC) is the right separation.
-
Instrument first. The
PerfHistorylock contention was invisible until we benchmarked at 64 sessions. Adding timing toTickSessionearly would have surfaced it sooner.
